Key Features

Covers S35 3-Perf Sensor Size

2.7x Zoom Ratio

PL Mount with Optional Mounts Available

f/1.9, T2.0 Aperture

2' Minimum Focus Distance

114mm Front Diameter

0.8 Gear Teeth on Focus, Iris, and Zoom

Replacement Rear Lens-Group

Covers Full-Frame/VistaVision

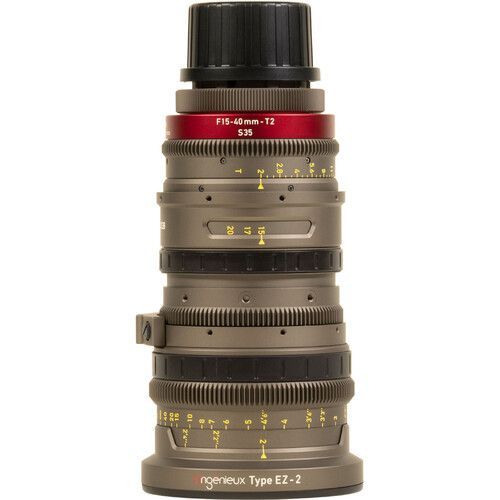

The EZ-2 15-40mm Cinema Lens Pack from Angenieux includes the PL mount version of the 15 to 40mm EZ-2 zoom lens with both the Super35 and FF/VistaVision rear lens-groups. The lens is fast, T2.0 in Super35 and T3.0 in full-frame/VistaVision. Swapping between the rear lens groups doesn't affect the physical length of the lens, minimum focus distance, or 2.7x zoom ratio. However, the full-frame rear lens group does change the lens from a 15 to 40mm zoom that covers Super35 to a 22 to 60mm zoom that covers the full-frame/VistaVision aperture.

The lens itself has 3 manual lens control rings: focus, iris, and zoom. Each ring features cine-style 0.8 MOD gear teeth, for compatibility with follow focus units and lens control motors. The 114mm front diameter allows you to work with a wide variety of rod supported matte boxes.

Interchangeable Lens Mounts

This lens ships with a PL mount; however, that mount can be swapped with available (not included) E or EF lens mounts.

Losing only 1/10 of a stop within the lens, the EZ-2 is extremely efficient. The fast T2.0 maximum aperture in Super 35mm matches the maximum aperture of many standard prime lenses for Super 35mm. This allows you to light to a lower illumination level than would normally be required for many zooms, making for more consistent images as you may not have to relight the scene as is often the case when moving from primes to slower zoom lenses.

Manual Lens Control Rings

Featuring independent manual control rings for focus, iris, and zoom. Each control ring incorporates industry standard 0.8 lens gear teeth.

114mm Front Diameter

The EZ-2 shares the same 114mm front common to the Angenieux OPTIMO lens series, allowing you to easily share matte boxes between the EZ-2 and the OPTIMO lenses.
